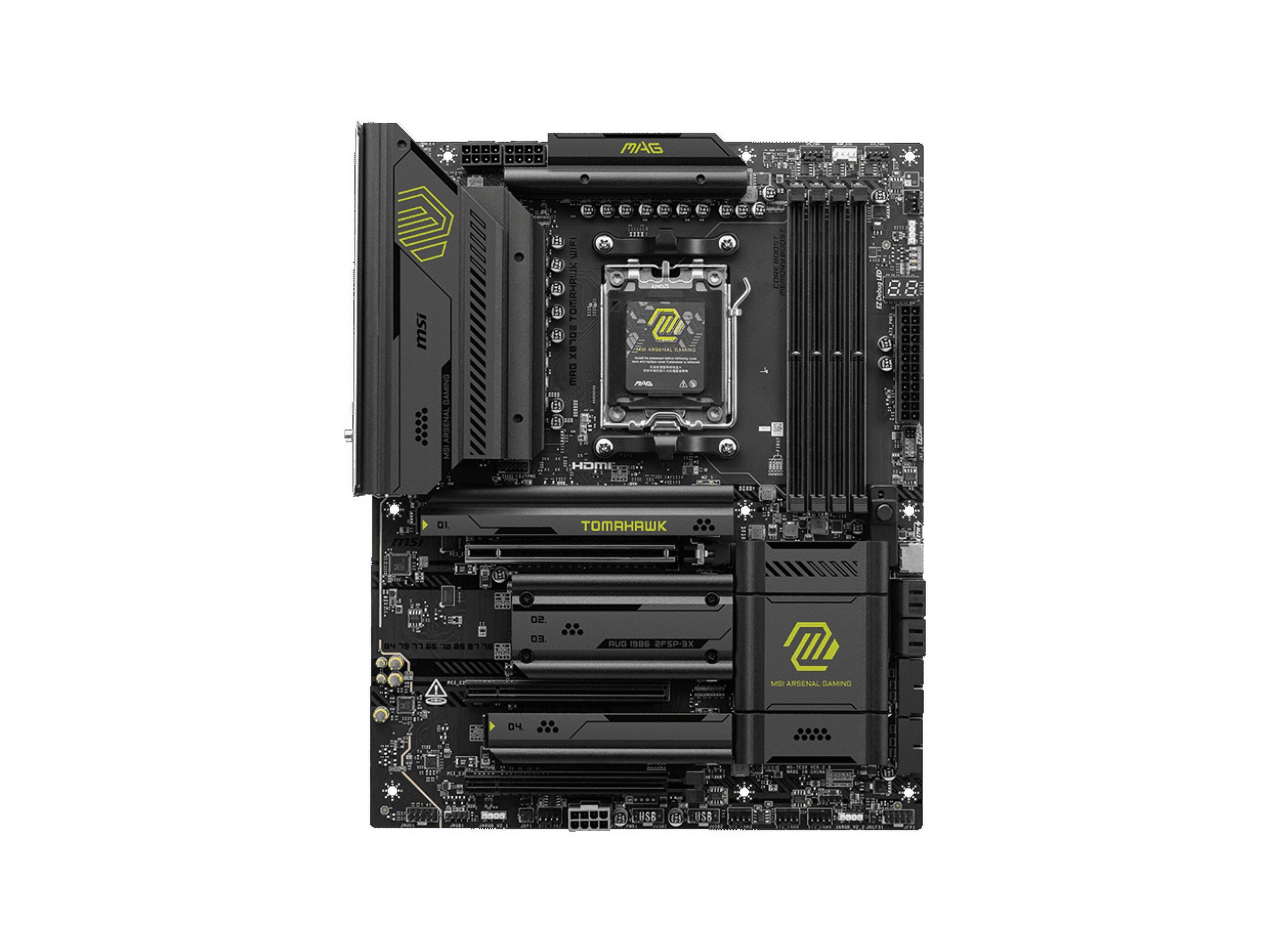

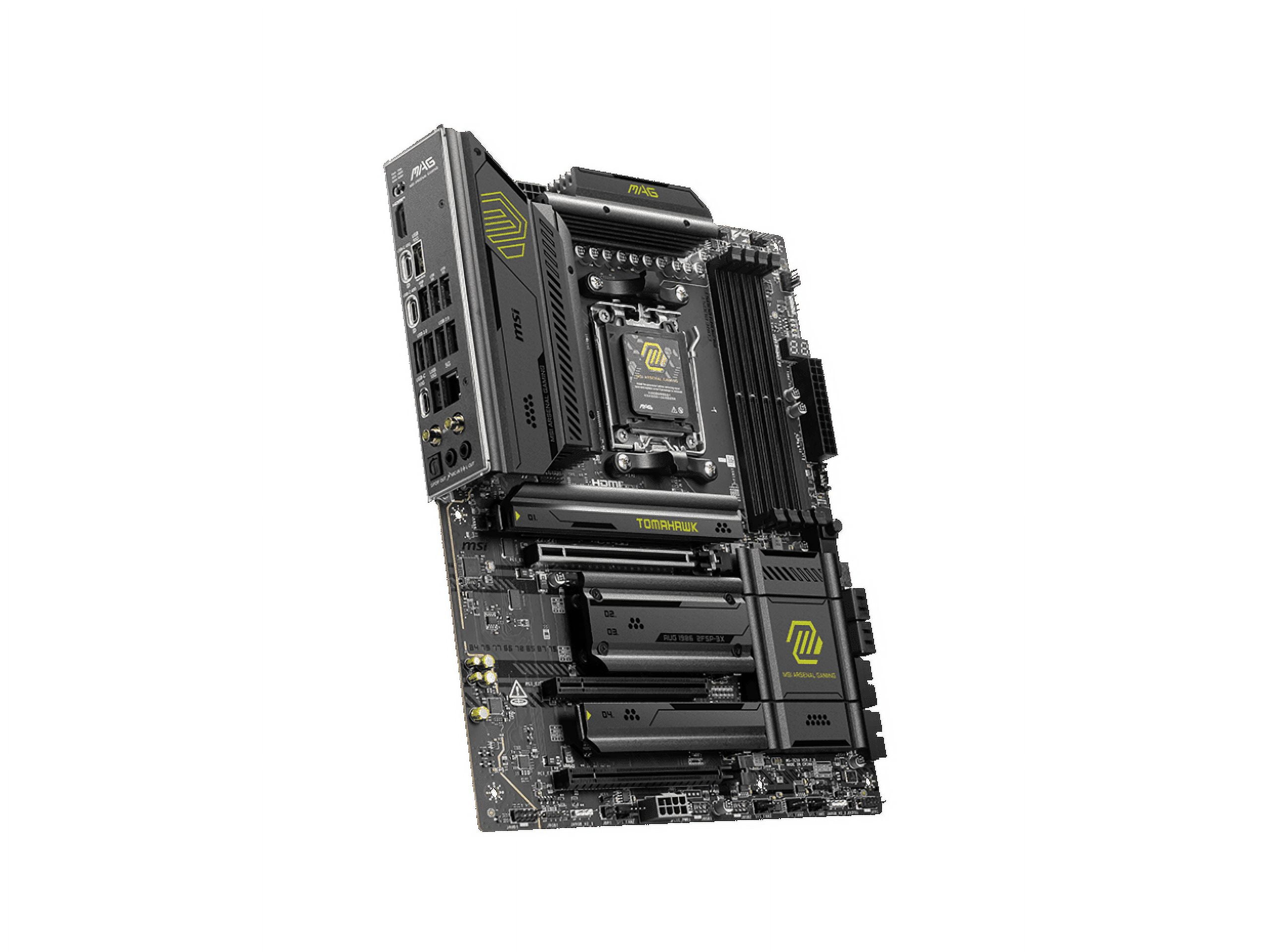

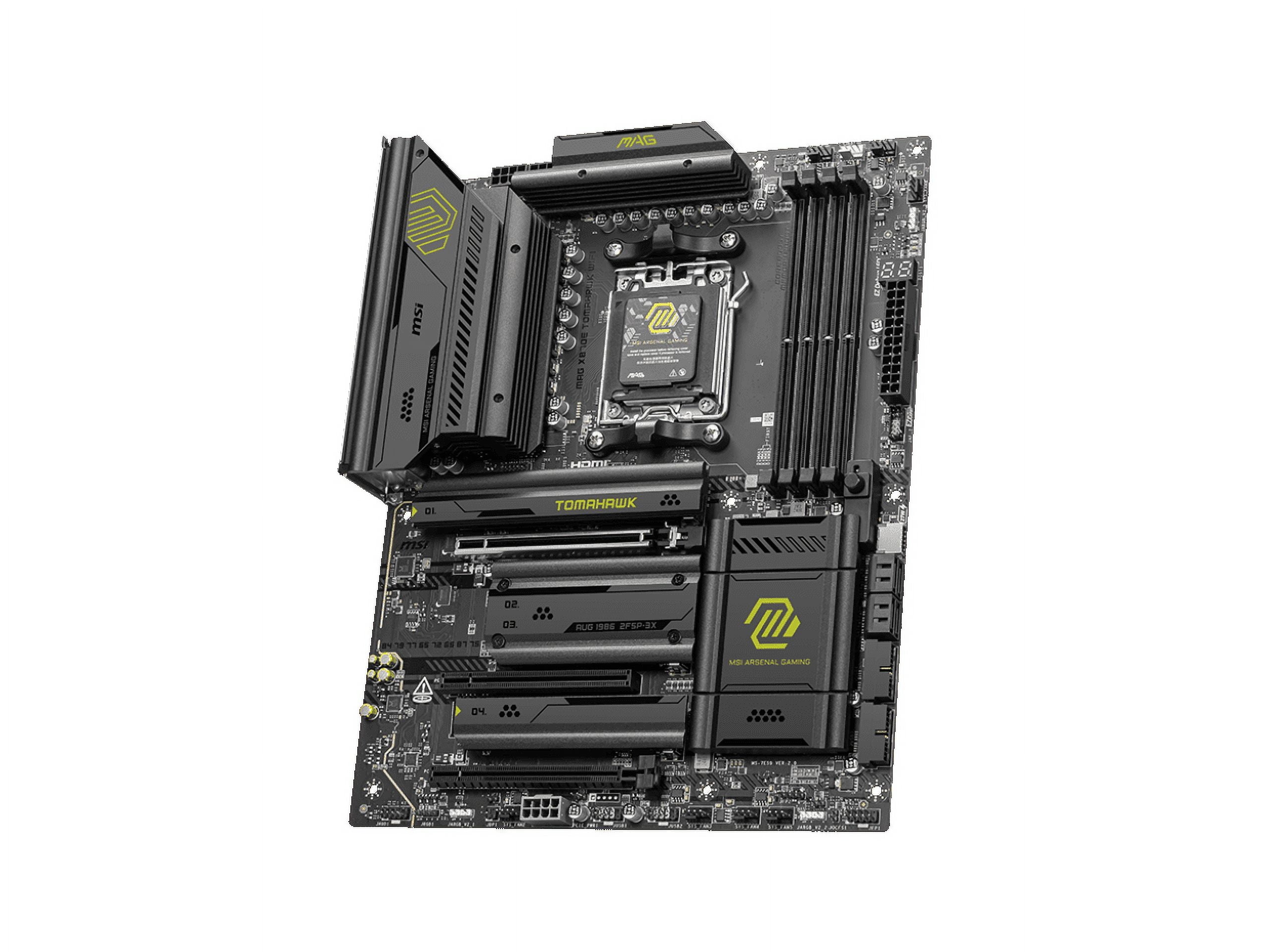

MSI MAG X870E TOMAHAWK WIFI AM5 AMD X870E PCIe 5.0/4.0 USB 40/20/10/5Gbps Type C/A Wi-Fi 7 ATX Motherboard
4.4 (46 items)
Limited Time Sale$155.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 230434914 | Release Date | 2026/06/18 | List Price | $104.00 | Model Number | 230434914 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
MSI MAG X870E TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen 9000 series processors.
- Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
- Storage Support: 4 x M.2
- Slots: 3 x PCI-E x16 slots (PCI_E1: PCIe 5.0 up to x16 / PCI_E2: PCIe 3.0 up to x1 / PCI_E3: PCIe 4.0 up to x4)
- LAN: 1 x Realtek 8126 5G LAN
- WiFi & Bluetooth: Wi-Fi 7 and Bluetooth 5.4
- Internal I/Os: 1 x Power Connector(ATX_PWR), 2 x Power Connector(CPU_PWR), 1 x Power Connector(PCIE_PWR 8pin), 1 x CPU Fan, 1 x Combo Fan (Pump_Sys Fan), 6 x System Fan, 1 x EZ Conn-header (JAF_2), 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD), 3 x Addressable V2 RGB LED connector (JARGB_V2), 1 x RGB LED connector(JRGB), 1 x TPM pin header(Support TPM 2.0), 4 x USB 2.0 ports, 4 x USB 5Gbps Type A ports, 1 x USB 20Gbps Type C ports

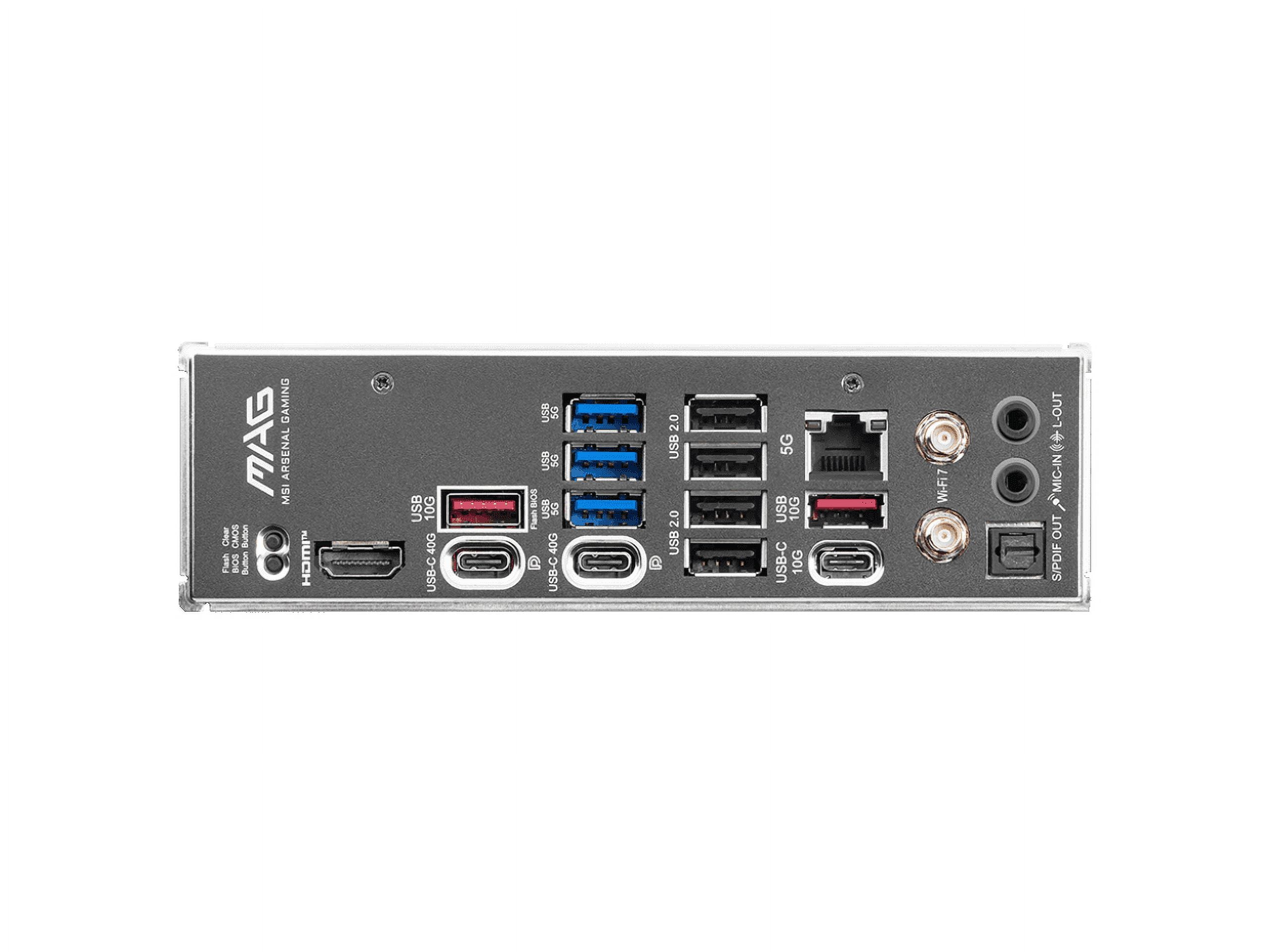

- Back Panel Ports: 1 x Clear CMOS Button, 1 x Flash BIOS Button, 1 x USB 10Gbps Type-A, 3 x USB 5Gbps Type-A, 4 x USB 2.0, 1 x 5G LAN, 2 x Wi-Fi / Bluetooth antenna connectors, 1 x SPDIF audio connector, 1 x Mic-in audio connector, 1 x Line-out audio connector, 1 x HDMI (for integrated graphics), 2 x USB 40Gbps Type-c, 1 x USB 10Gbps Type-C, 1 x USB 10Gbps Type-A
| Cpu socket type | AM5 |
|---|---|
| Motherboard form factor | ATX |
| Memory configuration | 4x DDR5 UDIMM |
| Proc. brand | MSI |
| Max RAM | 256 GB |
| Inputs/Outputs | Outputs - USB 2.0, S/PDIF, HDMI, DisplayPort |
| Brand | MSI |
| In/Out type | Wireless |
| Number of ports | 17 |
| Input/output quantity | 25 |
| Model name | MAG X870E TOMAHAWK WIFI |
| Accessories | Quick Installation Guide; Shout-Out Flyer; Cable Stickers; 2 x SATA Cables; 1-to-3 EZ Conn-Cable (V2); EZ Wi-Fi Antenna; EZ M.2 Clip II Remover; EZ Front Panel Cable; M.2 Plate Screw; USB Drive |
| Dimensions | 13.60 x 9.60 x 12.00 Inches |
